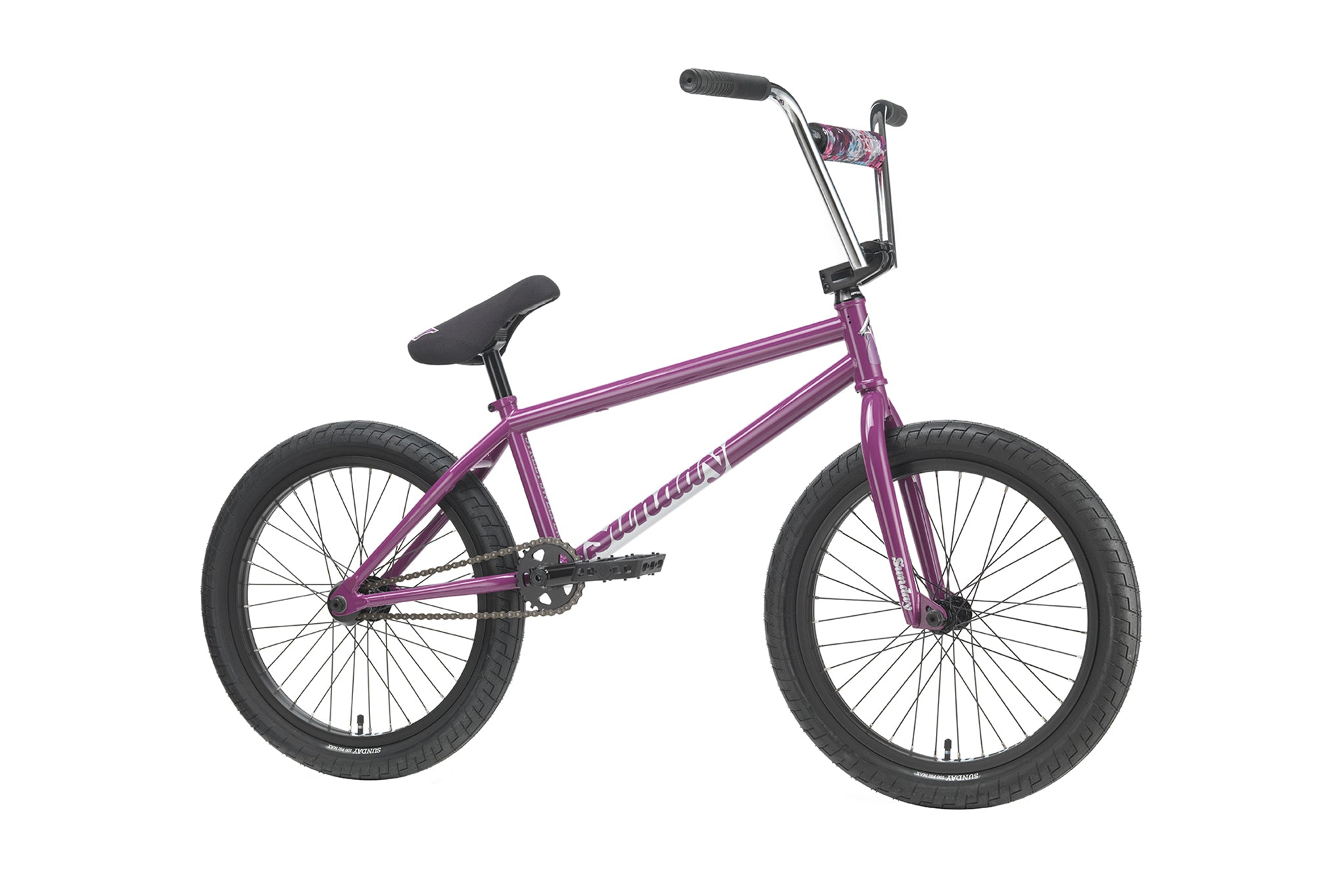

Sunday Street Sweeper ‑ Jake Seeley SignatureGloss Berry with 20.75" tt in RHD
This bike is designed with serious street riders in mind.
Built around Jake Seeley’s signature aftermarket frame, the Street Sweeper in Gloss Berry uses a 75.25° head tube angle, a very short chainstay and a higher bottom bracket to accommodate tech street riders out there.
As you would expect, this bike features Jake’s signature Street Sweeper v2 tires and grips, Sunday Blockhead seat and incredible Odyssey parts including the Clutch Pro freecoaster, Quadrant rims, Twisted Pro pedals and more. Crossbar pad included for style points.
Odyssey Springfield Brake, Lever and Quik-Slick Kable are included (not pictured).
Key Features
- Aftermarket Sunday Street Sweeper Frame
- 100% Chromoly Forks and 4-piece Bars
- Sunday Seeley Signature Grips
- Sunday Blockhead Seat
- Odyssey Clutch Pro Freecoaster
- Odyssey Quadrant Rims
- Sunday Street Sweeper v2 2.4" Tires
- Handlebar Pad
Specifications
Frame: Sunday Street Sweeper, 20.75" top tube, 100% chromoly aftermarket frame, removable brake hardware
Fork: Sunday Pro, 20", 100% chromoly fork w/ 1-piece steerer tube and welded pre-load, 25mm offset
Handlebar: Sunday, 100% chromoly, 4-piece with handlebar pad
Stem: Sunday Freeze top load, 48mm
Headset: FSA integrated conical, 1-1/8"
Alloy Cap: Sunday M16, aluminum
Brake Lever: Odyssey Springfield
Brakes: Odyssey Springfield U-brake
Brake Cable: Odyssey Linear Quik Slic
Grips: Sunday Jake Seeley
Seat: Sunday Blockhead, Pivotal
Seat post: Sunday Pivotal
Seat Clamp: Integrated
Sprocket: Sunday Sabretooth v2, 25T, 6061 aluminum
Cranks: 160mm, 3-piece, chromoly (LHD/RHD Compatible)
BB Parts: Sealed, Mid, 19mm
Pedals: Odyssey Twisted PC Pro
Rims: Odyssey Quadrant, 20", 36H
Front Hub: Sunday, 36H, low-flange, sealed , 3/8" inbound axle bolts
Rear Hub: Odyssey Clutch PRO freecoaster, 36H, 14mm inbound axle bolts w/ 9T driver, RHD, plastic guards
Spokes: 14g steel, black
Tires: Sunday Street Sweeper v2, 20 x 2.4" (F & R)
Chain: KMC Z1 wide
Approx. Weight: 24.97lbs (brakeless)
Frame Geometry
Top Tube Length: 20.75"
Head Tube Angle: 75.25°
Seat Tube Angle: 71°
Chainstay Length: 12.7"-13”
Bottom Bracket Height: 11.7"
Headtube Length: 4.7"
Standover: 8.85”
Handlebar Geometry
Rise: 9"
Width: 29"
Backsweep: 12°
Upsweep: 3°
---
*Specs subject to change without notice.
